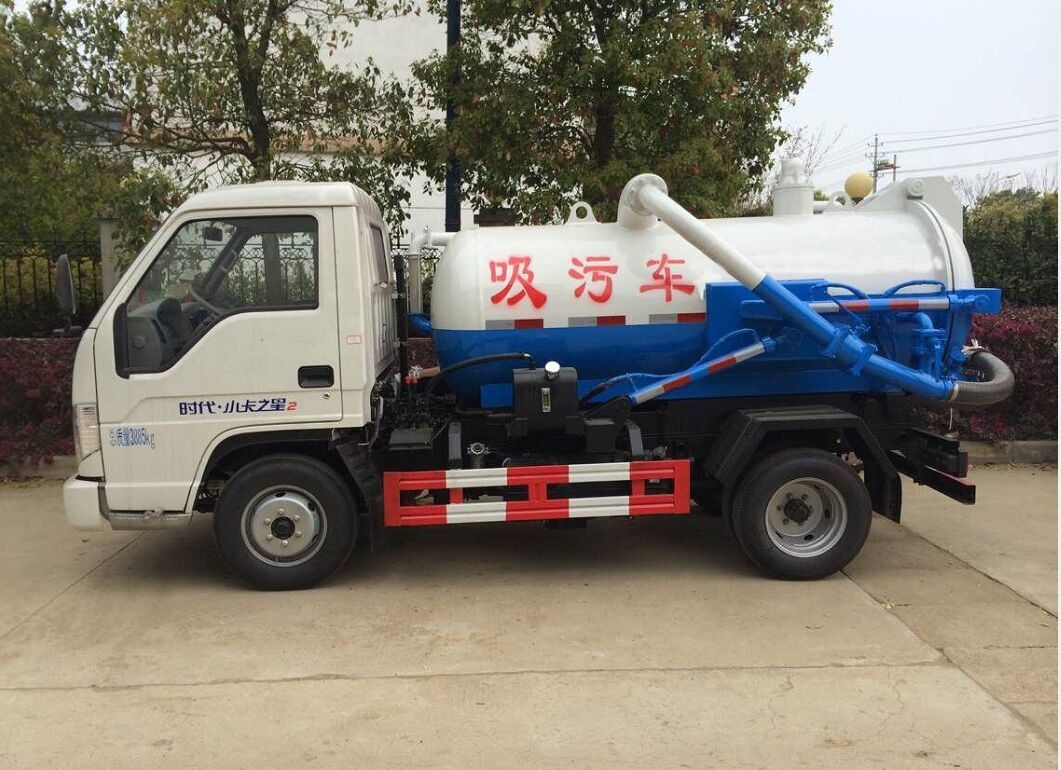

2500 gallons sewage truck sewage suction truck sino 4x2 sewage collector tank truck 10cbm for sale
Specifications:
1.We are professional manufacturers to do the special vehicles ,such as fire truck , wrecker tow truck, aerial work platform truck, water tank truck, fuel tank truck ,refrigerator truck ,mixer truck, truck with crane ,garbage truck ,vacuum sewage suction truck,etc .
2.We are supply all brands special truck , north benz(beiben) , Faw , Foton , Shaanxi ,Sinotruck
, Jac , Jmc , Dongfeng all avaliable .
3.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
4.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
Product advantage:
1. Factory export department directly sale ,reliable quality
2.Export experience more than 12 years
3.Cheap / competitive price, high quality ,you get more than your paid
4.With CCC, ISO , BV approved
5. The heart of the service, rational design
| Product model | vacuum sewage suction truck for good sale |
| Product parameters | Total mass(Kg) | 16000 |
| Rated weight(Kg) | 9500 |
| Curb weight(Kg) | 8000 |
| Overall dimension(mm) | 8500*2490*3050 |
| Carriage dimensions (mm) | / |
| |
| Chassis parameters | Chassis model | ZZ1163VLPHG-A |
| Fuel type | Diesel |
| Emission standard | Euro 3 |
| |
| Engine parameters | Engine model | YC190 |
| Manufacturer | YUCHAI |
| Displacement(ml) | 6700 |
| Power | 190hp |
| |
| Main Parameters | Rated person of Cab | 2 |
| Number of axles | 2 |
| Wheelbase(mm) | 4500 |
| Axle load(Kg) | 2920/4380 |
| Tires No. | 6 |
| Tyre size | 11.00-20 |
| Max. speed(Km/h) | 95 |
| Approach angle /Departure angle (°) | 19/16 |
| Front overhang /Rear overhang (mm) | 1015/1525 |
| Front track/Rear track(mm) | 1385/1425 |
Configuration:
1.Equipped with special vacuum pump,Equipped with power take off, transmission shaft,
high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment
,Time for full sucktion<5min
2. the sewage suction truck special section, taking the force transmission device by rotary vane
pumps, vacuum pump ,(with domestic leading technology big suction) oil and gas separation
device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system
composition, and equipped with hand-washing facilities and visual dung tube.
3.the Sewage suction truck oblique liquid, can suck full alarm device after full automatic alarm,
prevent sewage spills of vacuum pump caused damage,optional choose carbon steel, stainless
steel, epoxy resin anticorrosive processing (rounded pot), may do anticorrosive processing,
extracting partial chemical sewage and waste water.
